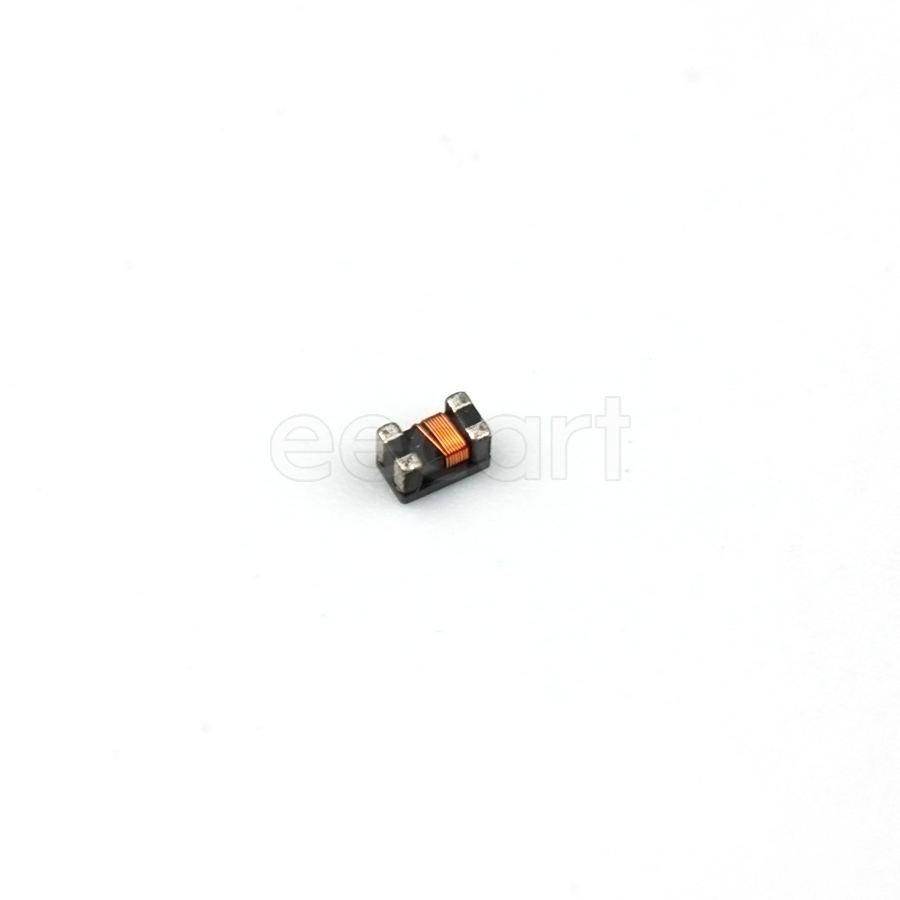

ACM2012-900-2P-T002
Manufacturer:
TDK Corporation
Mfr.Part #:
ACM2012-900-2P-T002
Datasheet:
Description:
Common Mode Chokes SMD/SMT Max Current Rating:400 mA Number of Lines:2 90 Ω 190 mΩ 200 µH
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 50 V |
| Length | 2.2 mm |
| Width | 1.2 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Case Code (Imperial) | 0805 |
| Case Code (Metric) | 2012 |
| Number of Pins | 4 |
| Composition(Kit Type) | Wirewound |
| Height | 1.3 mm |
| Packaging | Reel |
| Voltage Rating | 50 V |
| Depth | 1.4 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Impedance | 90 Ω |
| Self Resonant Frequency | 100 MHz |
| Type | Signal Line |
| Current | 400 mA |
| Current Rating | 400 mA |
| DC Resistance (DCR) | 190 mΩ |
| Max Current Rating | 400 mA |
| Test Frequency | 100 MHz |
| Military Standard | Not |
| Lifecycle Status | Production (Last Updated: 1 year ago) |
| Shielding | Shielded |
| Number of Lines | 2 |
| Inductance | 200 µH |
| Core Material | Ferrite |
| Element Configuration | Dual |
| RMS Current (Irms) | 400 mA |
| Coil Resistance | 190 mΩ |
| Max DC Current | 400 mA |
| Series Resistance | 190 mΩ |
| DC Current | 400 mA |
| Schedule B | 8504500000 |
Stock: 41863
Distributors
pcbx
pcbxUnit Price$0.07488
Ext.Price$0.07488
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.07488 | $0.07488 |
| 10 | $0.06719 | $0.67190 |
| 50 | $0.06029 | $3.01450 |
| 100 | $0.05326 | $5.32600 |
| 500 | $0.04705 | $23.52500 |
| 1000 | $0.04540 | $45.40000 |
| 3000 | $0.04381 | $131.43000 |
